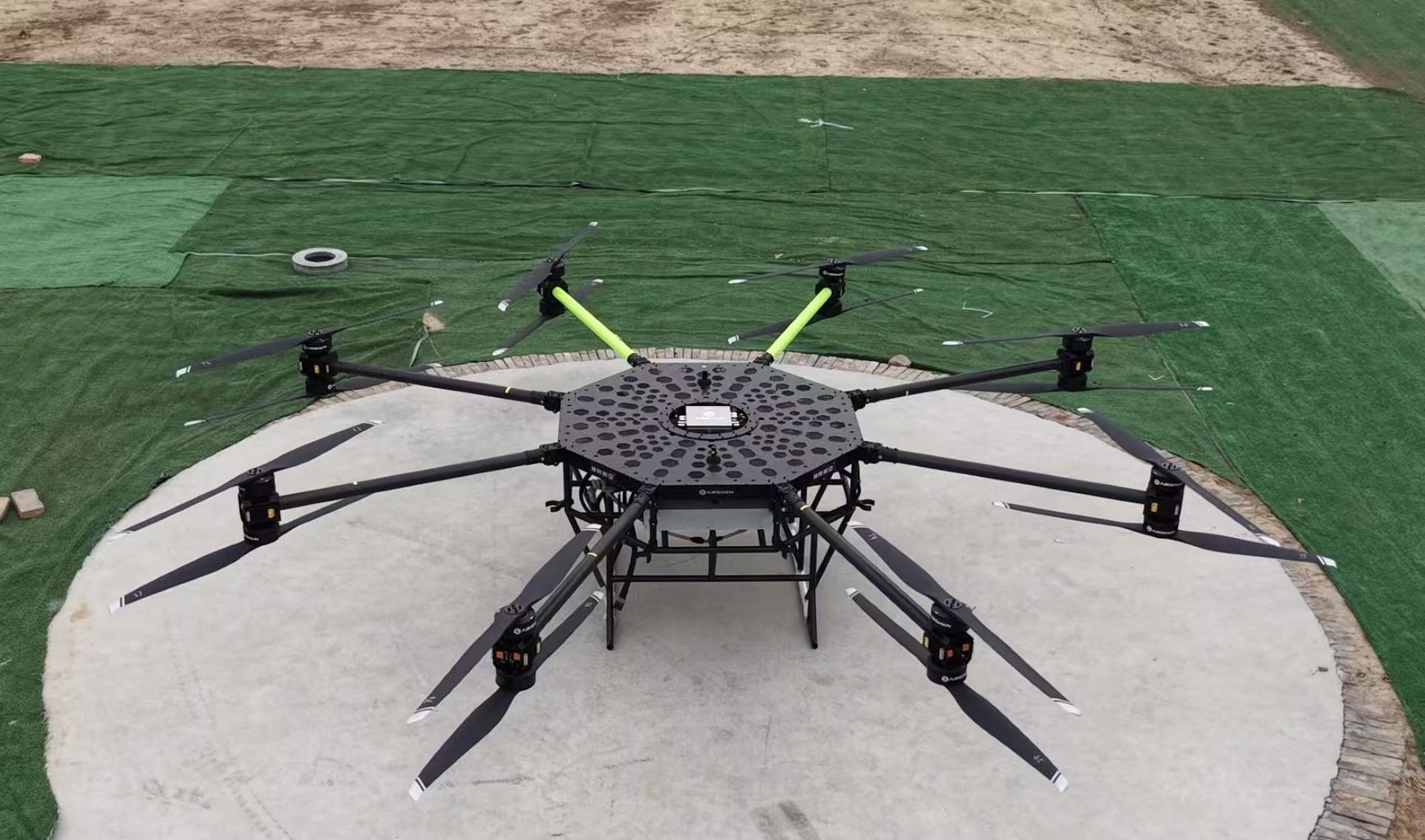

AirBull-225 Cargo Drone
- Aircraft structure：8-Axis 16-Rotor
- Unfolded Size：4040*4040*1035mm
- rated load capacity：220KG
- Wind Resistance Grade：Level 7
- Unladen mass：130KG
- full-load flight duration：12 minutes
- No-load hovering time：40 minutes
Product Details
Airbull-225 Cargo Drone，It adopts an eight-axis and sixteen-rotor design. The aircraft has a self-weight of 130 kilograms and a safe rated load capacity of 220 kilograms. Its maximum hover time with no load reaches 40 minutes, and the maximum endurance under safe full-load conditions is 12 minutes. It is equipped with three groups of batteries, totaling 9 units, which supports 8 to 12 hours of daily operation. The maximum takeoff weight of the aircraft is 436 kilograms, and the maximum operational altitude is 5,000 meters.
Service Package
1. Three days of on-site hoisting and trial flight training at the factory
2. Purchase the flagship model, and you will receive one quota for the CAAC Medium Beyond Visual Line-of-Sight Pilot Course in addition to the three-day hoisting trainin
Product Parameters
Drone Structure | 8-Axis 16-Rotor |
Product Material | 30% aerospace aluminum alloy, 70% high-strength carbon fiber composite material |
Overall Wheelbase | 4170mm |
Expanded Size | 4040*4040*1035mm |
Folded Size | 1700*2200*1560mm(Compatible with 4.2m box trucks) |
Empty Aircraft Weight | 130KG |
Rated Load | 220KG |
Max-load Endurance | 12min |
Unload Endurance | 40min |
Maximum Flight Speed | 50km/h |
Position Accuracy | ±0.02m (RTK) |
Waterproof Rating | IPX6 |
Wind Resistance Rating | Level 7 |
Fail-Safe | Auto Return-to-Home triggered by low battery; One-key Auto Return-to-Home.One-key aerial release for 220kg lifting load (zero delay) |
