AirBull-200 Cargo Drone
- Aircraft structure：8-Axis 16-Rotor

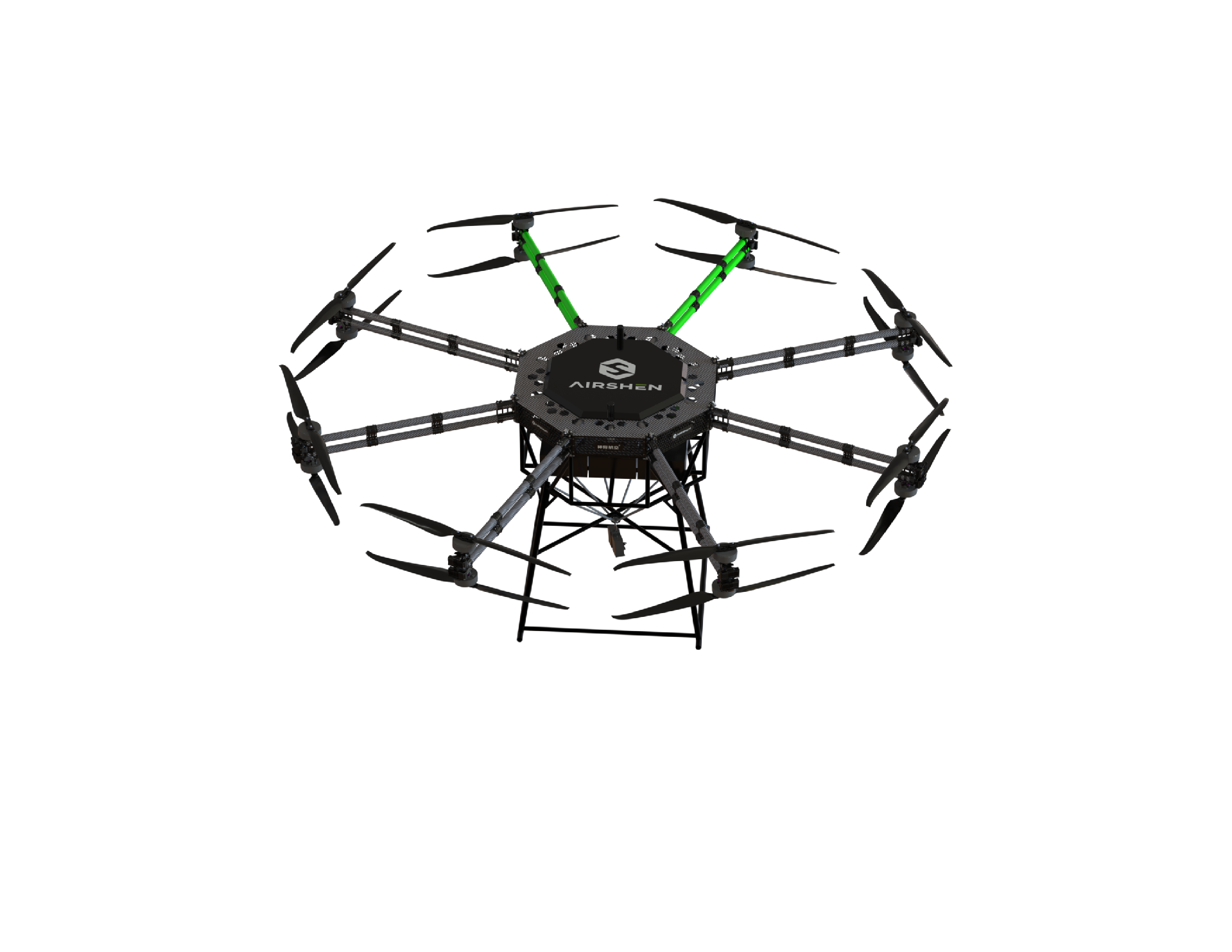

- Unfolded Size：4050*4050*1200mm
- rated load capacity：200KG
- Wind Resistance Grade：Level 7
- Unladen mass：133KG
- full-load flight duration：15 minutes
- No-load hovering time：40 minutes
Product Details
The Tianniu-200 cargo UAV adopts an eight-axis sixteen-rotor configuration. It has a dead weight of 133 KG and a safe rated payload of 200 KG. Its maximum no-load hover time reaches 40 minutes, and the maximum safe full-load endurance is 15 minutes. Equipped with three sets (9 batteries in total), it supports 8 to 12 hours of daily operations. The maximum takeoff weight of the UAV is 417 KG, and its maximum operating altitude is 5000 meters.
Service Packag
1. 3 days of internal factory training on aircraft hoisting and test flights
2. Purchase the flagship model, and receive 1 additional spot for the CAAC Medium-Range Beyond Visual Line of Sight (BVLOS) Captain Course, in addition to the 3-day hoisting training
Product Parameters
Drone Structure | 8-Axis 16-Rotor |
Product Material | 30% aerospace aluminum alloy, 70% high-strength carbon fiber composite material |
Overall Wheelbase | 4100mm |
Expanded Size | 4050*4050*1200mm |

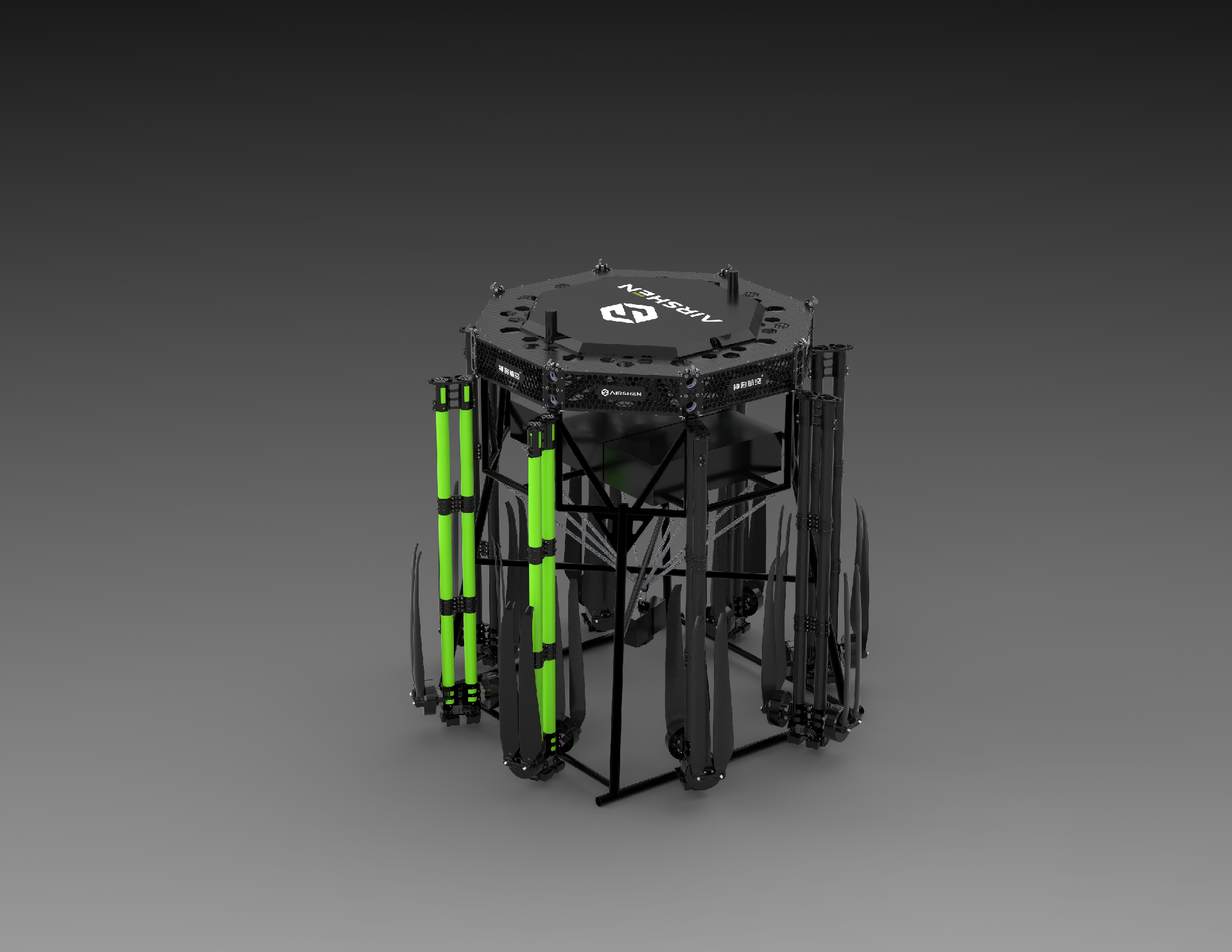

Folded Size | 1700*1700*1730mm(Compatible with 4.2m box trucks) |
Empty Aircraft Weight | 133KG |
Rated Load | 200KG |
Max-load Endurance | 15min |
Unload Endurance | 40min |
Maximum Flight Speed | 50km/h |
Position Accuracy | ±0.02m (RTK) |
Waterproof Rating | IPX6 |
Wind Resistance Rating | Level 7 |
Fail-Safe | Auto Return-to-Home triggered by low battery; One-key Auto Return-to-Home.One-key aerial release for 200kg lifting load (zero delay) |
